22-Circuit Compact Automotive Fuse & Relay Block

22-Circuit Compact Automotive Fuse & Relay Block

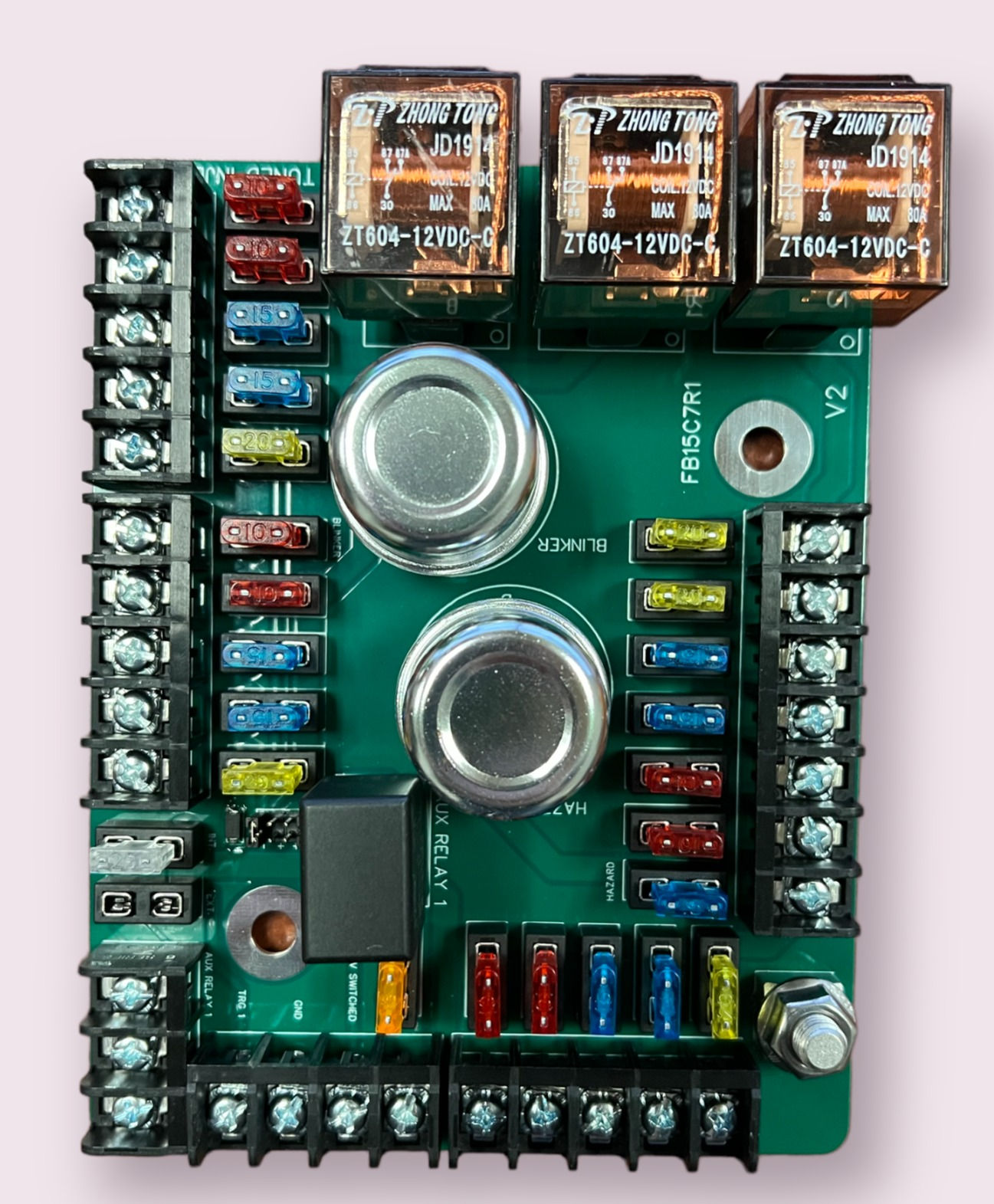

Save space in a custom vehicle wiring project with the Tuned Injection 22-circuit compact automotive fuse and relay block. It combines switched circuits, constant fused outputs, flashers, and configurable relay functions in one organized board.
Unlike most fuse and relay boards that limit you to how many connections you have, this board provides all the needed circuits to run your vehicle, in a very compact size.

The board consists of: 22 circuits

 3 Main relays that turn on when key is on;
Main Relay 1 feeds 5 fuses
Main Relay 2 feeds 5 fuses
Main Relay 2 feeds 5 fuses

2 Flashing Relays;
Hazard Flasher with constant power
Blinker Flasher with key on power

7 Constant 12v Fused Outputs

1 Fused Aux Relays with capabilities;
Positive or negative trigger with diode protection, just change the two onboard jumpers, - for negative trigger or + for positive trigger
Option for internal or external connection for relays input( Pin 30 of relay). If the fuse for the relay is in the int. position, the relay input is connected to +12v. If the fuse for the relay is in the ext. position the relay input is connected to the external connector labeled PWR
5 pin relay for normally open or normally closed applications

Outer Dimension is 5"x6.5"
